Balance weave belts with the load weight, we can adjust the spiral wire and rod wire to satisfy customers’ requirement
Balance weave belts Product

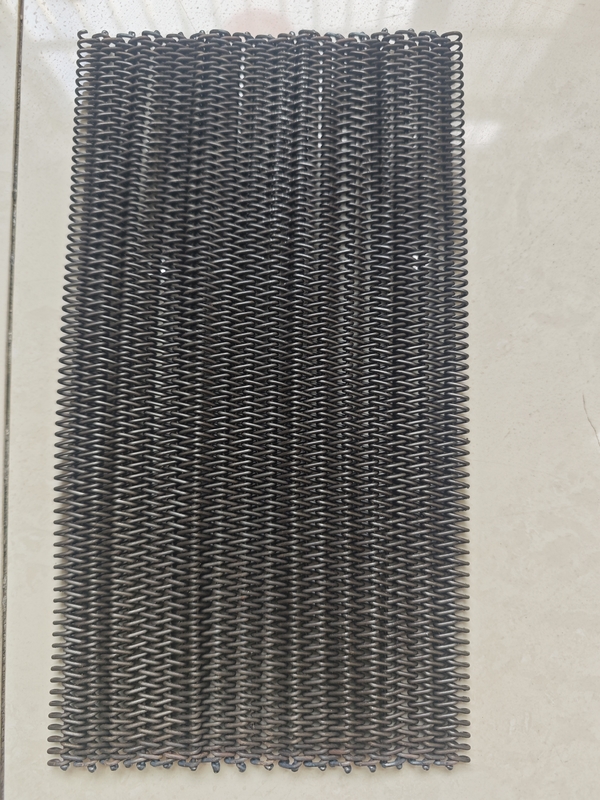

Balance weave belts, one popular style of mesh belts, is very simple and economic; made of left and left spiral wire and crimpled or direct rod wire. With the load weight, we can adjust the spiral wire and rod wire to satisfy customers’ requirement; For the selvage of balance weave belts, there are welded, laddered, U-pin edges for choosing; With different furnace working temperature, many alloy are chosen, such as cartoon steel, middle steel,SS304, 316,310,340,Mn steel and so on.
Balance weave belts Feature
● Simple and economic
● Direct run, friction driven, only for belt
● Adapted to fit accessories, such as chain, guard plate, flight and so on
● long working life
● customized products for balance weave belts specification and selvage options
Balance weave belts Specification
● Spiral pitch:2.8mm-20mm
● Rod Pitch:3.8mm-20mm
● Spiral wire 0.8mm-3.5mm
● Rod wire:0.8mm-5mm
● Selvage options: welded, laddered, U-pin edges;
● The width of balanced weave belts over 6.5m
● Fit accessories: chain, support rods, guard plates, flights and so on.
● Driven ways: friction driven, precision driven

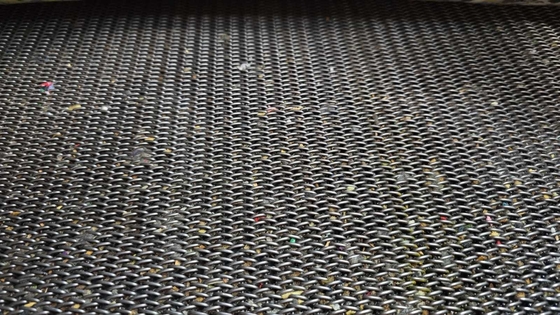

Balance weave belts Application
Balance Weave Belts
